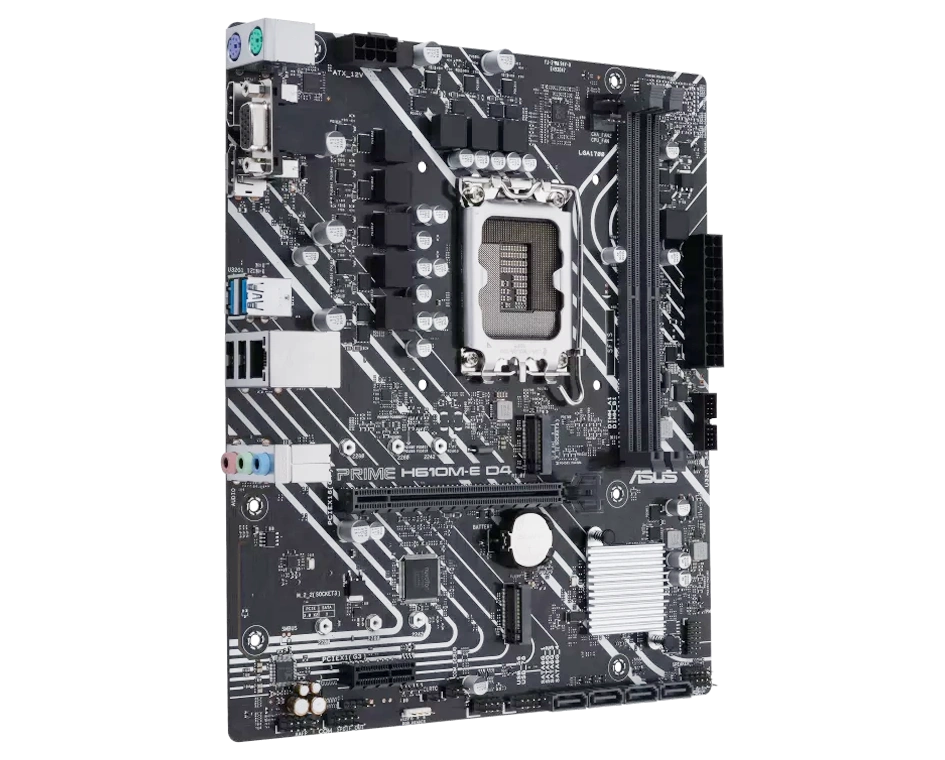

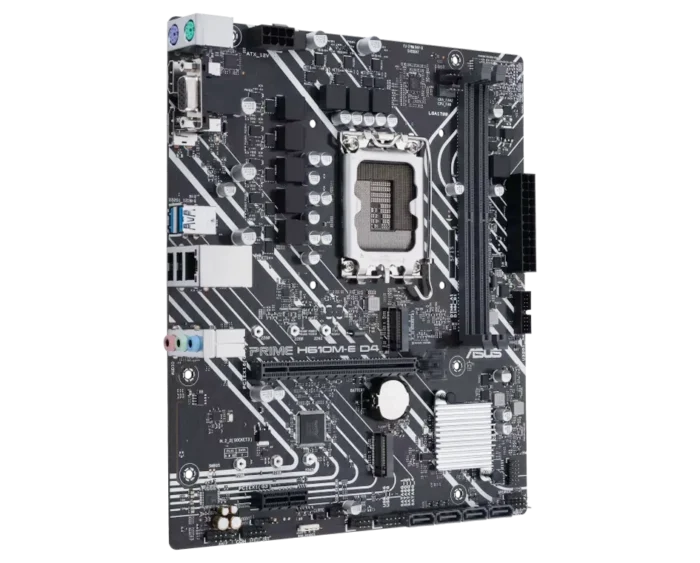

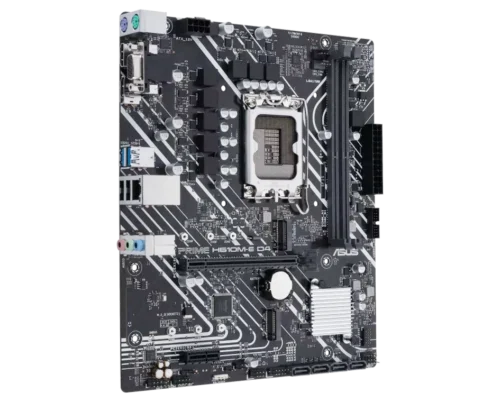

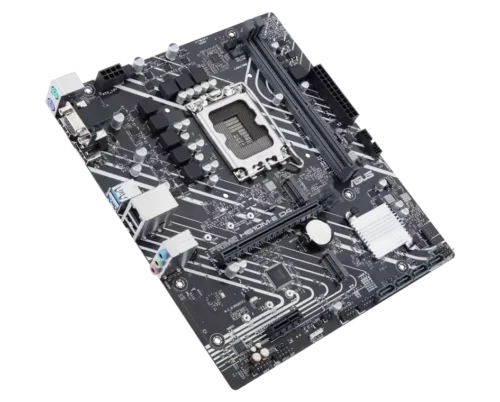

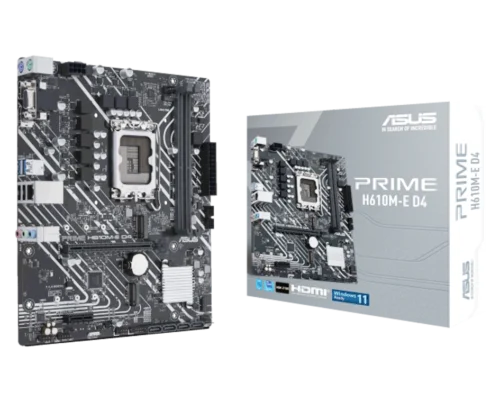

ASUS PRIME H610M-E D4 Motherboard

CPU
Supports Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Actual memory data rate depends on the CPU types and DRAM modules. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics
1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
Graphics specifications may vary between CPU types. Refer to www.intel.com for updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® Core™ Processors (14th, 13th, 12th Gen)1 x PCIe 4.0 x16 slot
Intel® H610 Chipset1 x PCIe 3.0 x1 slot

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® H610 ChipsetM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio FeaturesAudio Shielding
Premium audio capacitors
Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

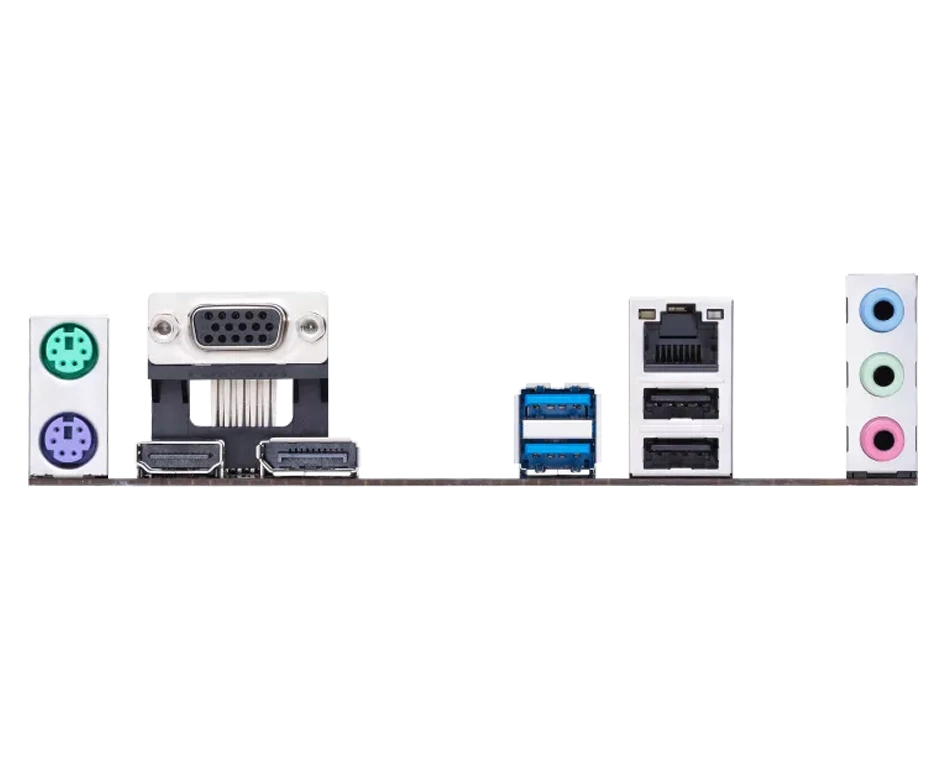

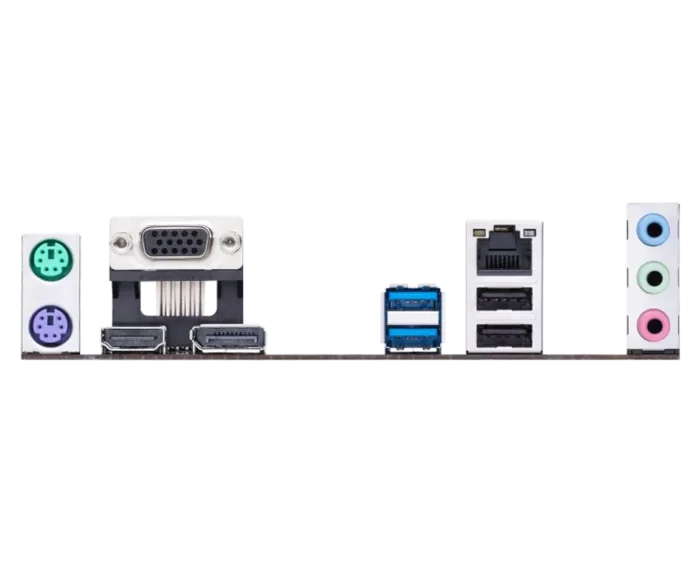

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors
Fan and Cooling related1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION IIIDIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core
Stainless-Steel Back I/O
ASUS Q-DesignQ-DIMM
Q-Slot
ASUS Thermal SolutionAluminum heatsink design
ASUS Lighting ControlRGB header

Software Features
ASUS Exclusive SoftwareArmoury Crate
AI Suite 3Performance And Power Saving Utility
TurboV EVO

EPU
DIGI+ VRM
Fan Xpert 2+
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOSASUS EZ DIYASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability.

WOL by PME, PXE

Accessories
Cables2 x SATA 6Gb/s cables
Miscellaneous1 x I/O Shield
1 x M.2 SSD screw package
Installation Media1 x Support DVD
Documentation1 x User guide
