Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
Product Segment
AX6000 ultimate AX performance
WiFi Data Rate
2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 4×4
5GHz 4×4
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash, 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,
Operating Frequency
2.4G Hz / 5 GHz
Operating Mode
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
I/O Ports
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1
Buttons
WPS Button,
Reset Button,
Power Button,
LED Control Button
Reset Button,
Power Button,
LED Control Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
Package Content

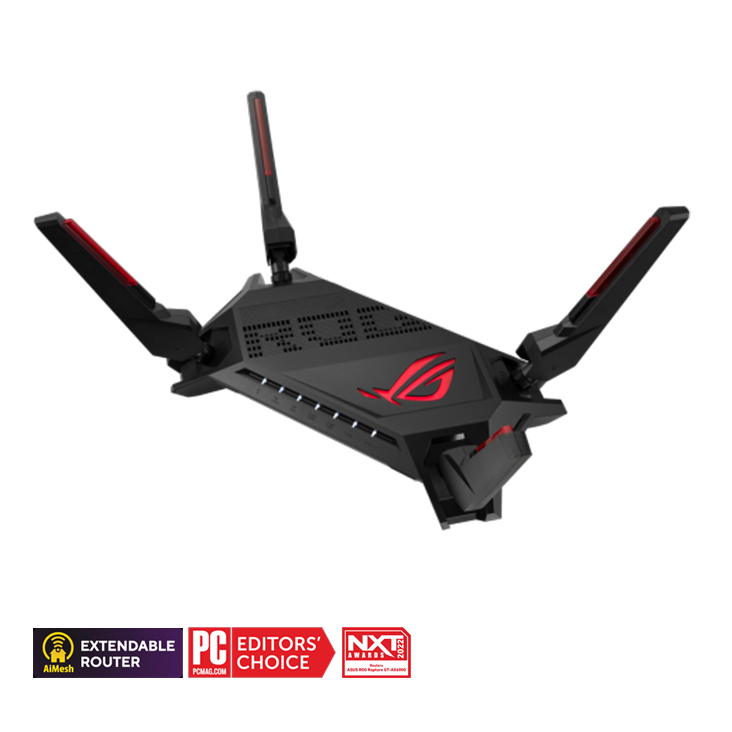

GT-AX6000 WiFi 6 Dual-Band Gaming Router
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1121.4 g
Product Dimensions
337.7 x 196.0 x 220.9 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
ROG_First
OpenNAT (Game Profile)
Gaming Port
Parental Control
“Allow you to block access to unwanted websites and apps.”
Parental Control Customized Internet Schedule
Guest Network
“The Guest Network provides Internet connection for guests but restricts access to your local network.”
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal
Security
WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
Traditional QoS
— Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
Operating system : ASUSWRT
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
