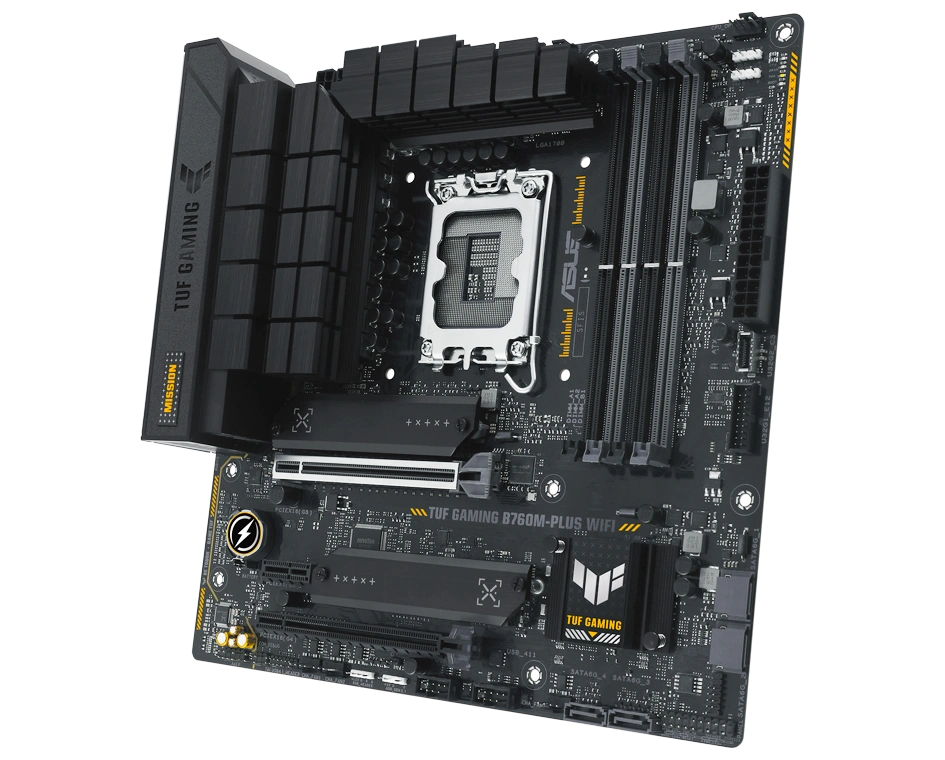

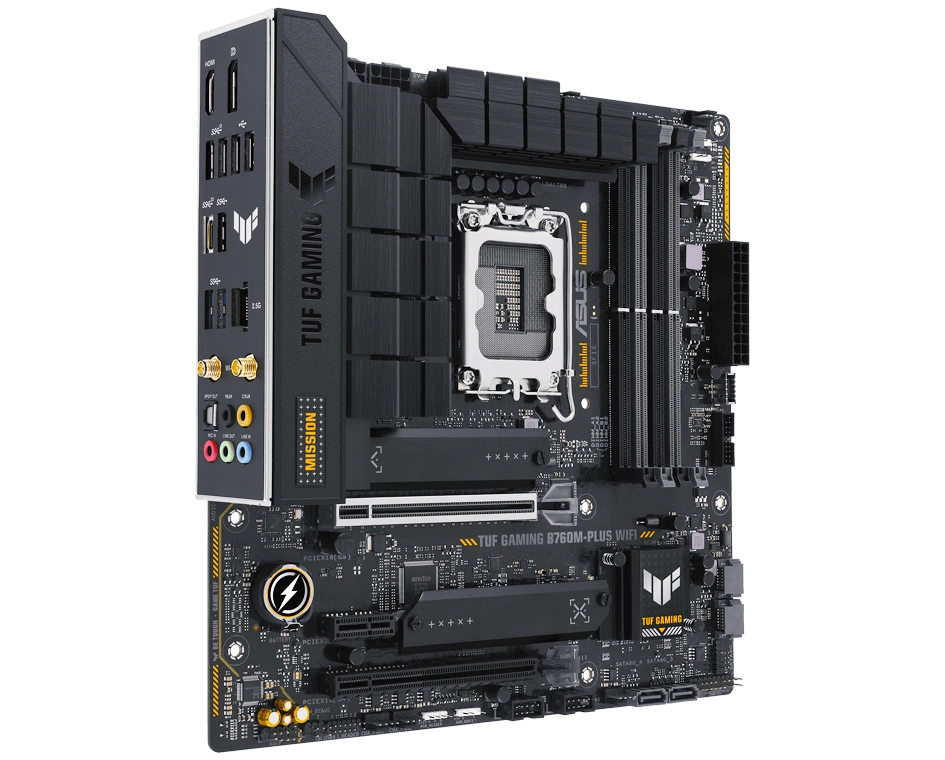

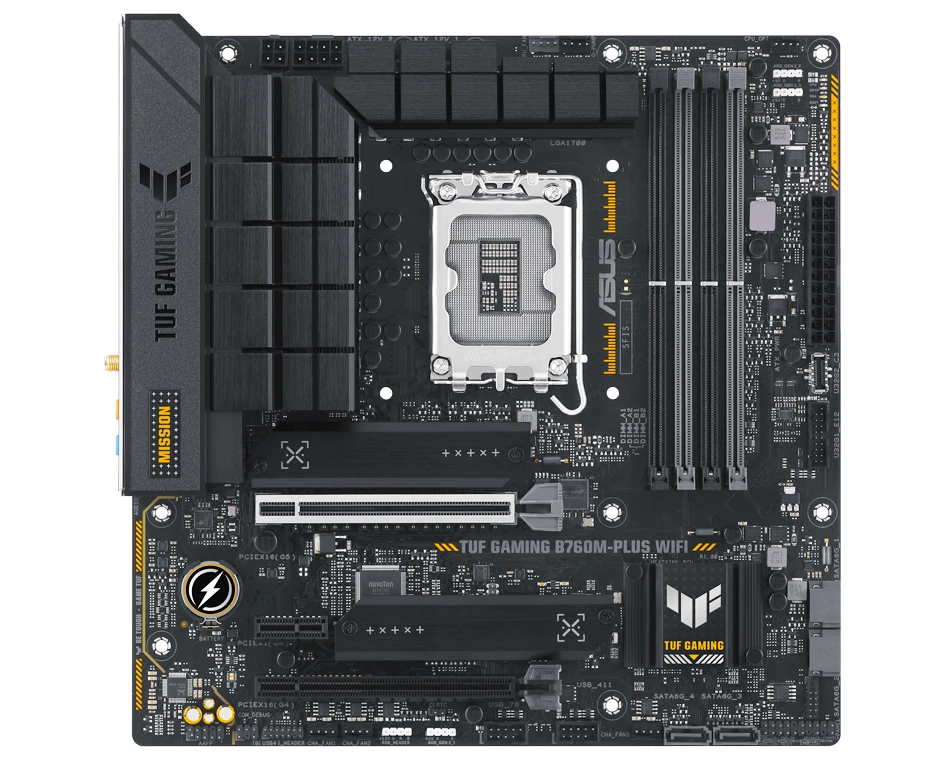

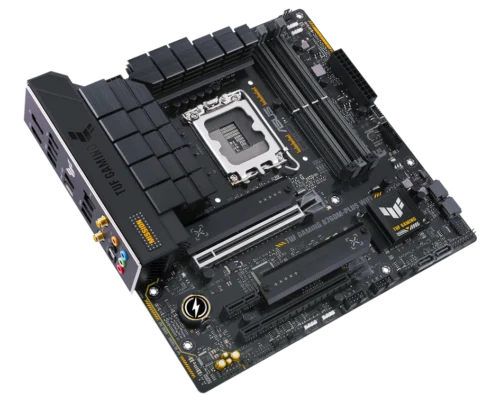

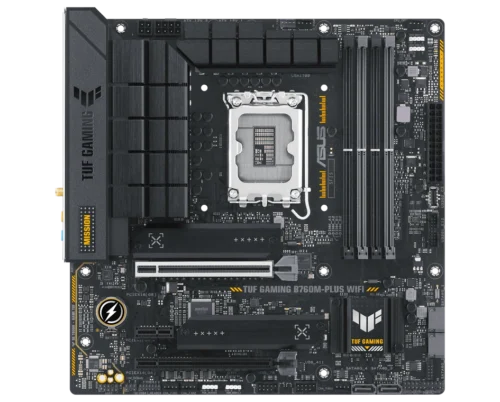

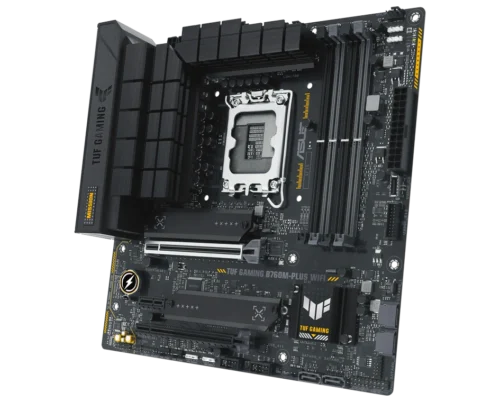

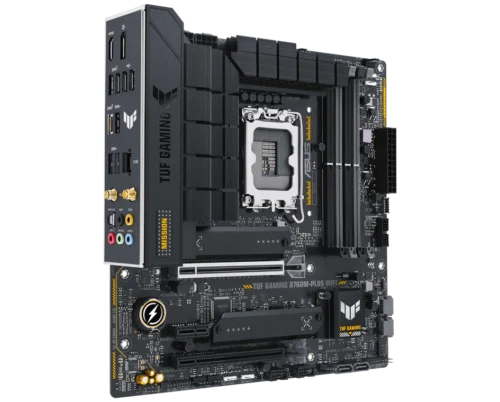

ASUS TUF B760M-PLUS WIFI DDR5 Motherboard

CPU Support

• Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors, Pentium® Gold, and Celeron® Processors.
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0.

Chipset

• Intel® B760 Chipset

Memory

• 4 x DIMM slots, up to 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory.
• Dual Channel Memory Architecture.
• Supports Intel® Extreme Memory Profile (XMP) and OptiMem II.

Graphics

• 1 x DisplayPort 1.4 (4K@60Hz).
• 1 x HDMI™ 2.1 port (4K@60Hz).

Expansion Slots

• 14th, 13th, and 12th Gen Processors: 1 x PCIe 5.0 x16 slot.
• Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot.

Storage

• 2 x M.2 slots (Key M) supporting PCIe 4.0 x4 mode.
• 4 x SATA 6Gb/s ports.

Networking

• 1 x Realtek 2.5Gb Ethernet with TUF LANGuard.
• Wi-Fi 6 (2×2, 802.11 a/b/g/n/ac/ax) and Bluetooth® v5.2.

USB Ports

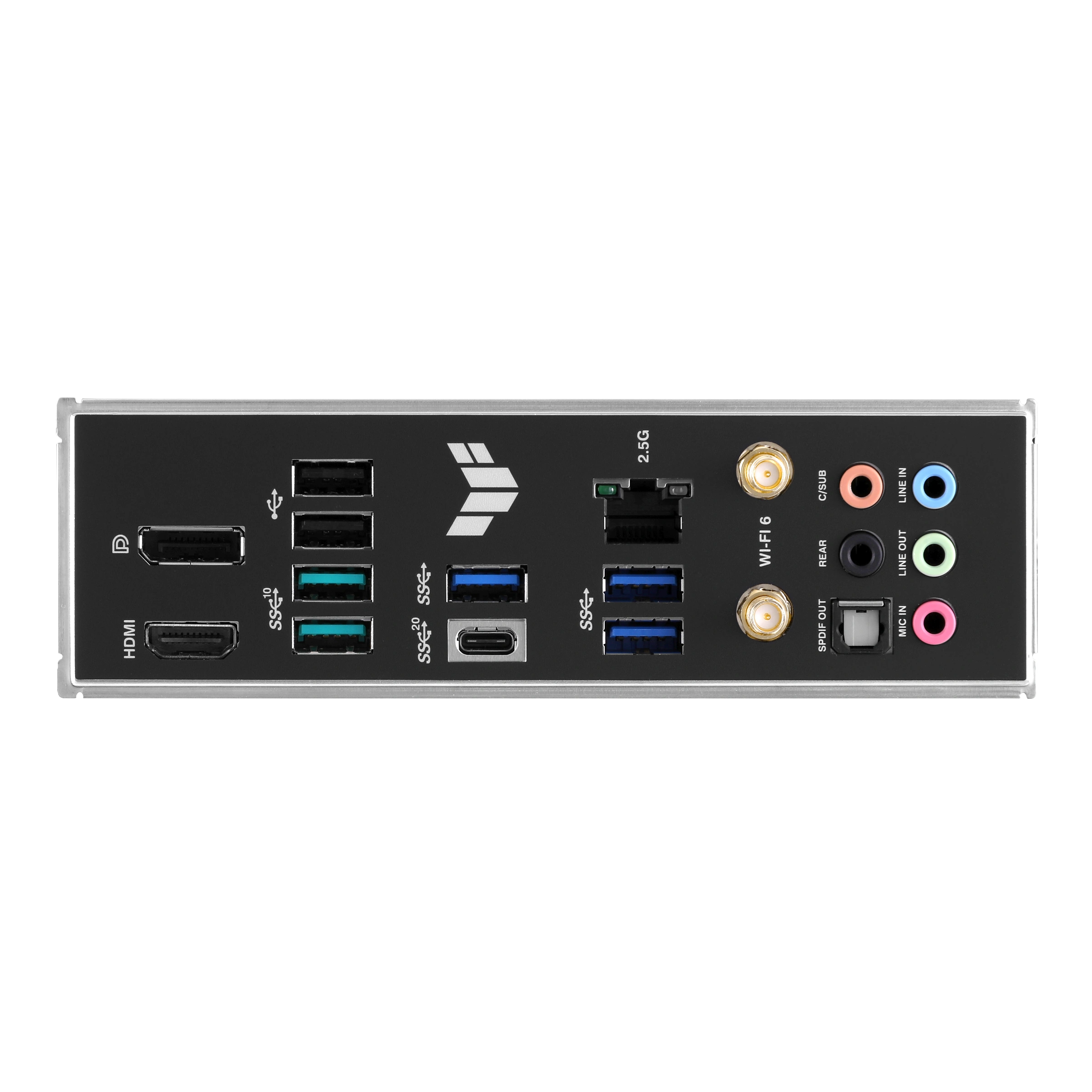

• Rear USB (8 ports): 1 x USB 3.2 Gen 2×2 (Type-C®), 2 x USB 3.2 Gen 2 (Type-A), 3 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 (Type-A).
• Front USB (7 ports): 1 x USB 3.2 Gen 2 connector (Type-C®), 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (support 4 ports).

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC with premium audio capacitors, audio shielding, and dedicated audio PCB layers.
• Supports up to 24-Bit/192 kHz playback.

Form Factor

• microATX, 24.4 cm x 24.4 cm.

Special Features

• ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O.
• ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot.
• ASUS Thermal Solution: M.2 heatsink, VRM heatsink.
• AURA Sync: AURA RGB header, Addressable Gen 2 headers.

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS.

Accessories

• 2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, M.2 Rubber Package, Screw package for M.2 SSD, TUF Gaming sticker.

Operating System

• Windows® 11, Windows® 10 64-bit.
