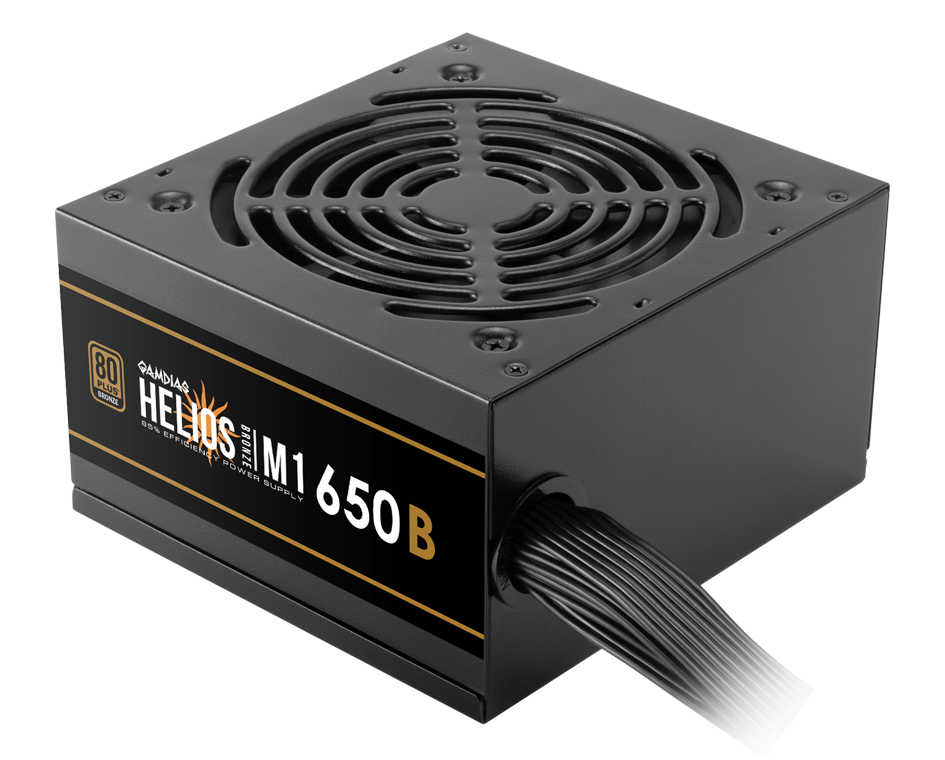

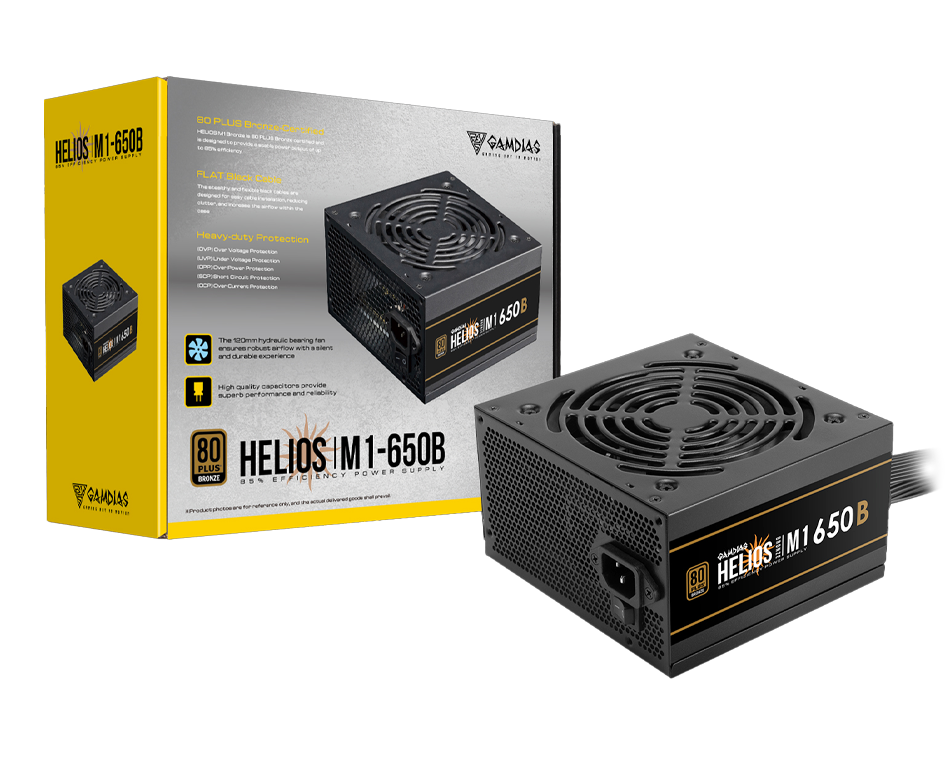

GAMDIAS Helios M1 650B 80 Plus Bronze 650W Power Supply

Model & Type

• Model: HELIOS M1-650B

• Type: ATX12V v2.4

• Form Factor: Standard ATX

• Modular: Non-Modular

• Cable Style: Flat Cable Design

Power Output & Efficiency

• Total Power: 650W

• Efficiency: Meets 80 PLUS Bronze standards

• Power Factor Correction: Active PFC (APFC) with PF value up to 0.99

• Supports C6/C7 Power States: Yes (Ideal for energy-saving CPUs)

• Silent Mode: Not supported

Input & Output Ratings

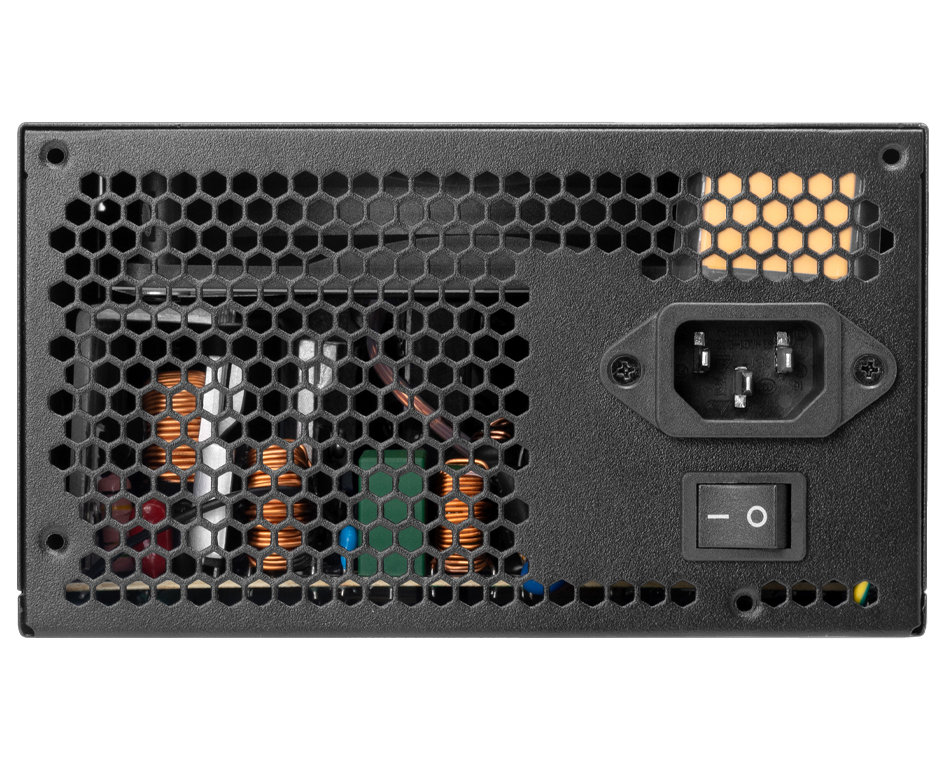

• AC Input: 100–240V / 5–10A / 47–63Hz

• DC Rails: +3.3V / +5V / +12V / -12V / +5Vsb

• Max Output Current:

  • +3.3V: 18A

  • +5V: 18A

  • +12V: 48A

  • -12V: 0.4A

  • +5Vsb: 2.5A

• Max Output Power:

  • +3.3V & +5V Combined: 100W

  • +12V: 576W

  • -12V: 4.8W

  • +5Vsb: 12.5W

Protection Features

• OVP – Over Voltage Protection

• UVP – Under Voltage Protection

• OPP – Over Power Protection

• OCP – Over Current Protection

• SCP – Short Circuit Protection

Connector Configuration

• Main Connector: 1x 20+4 Pin

• CPU Connector: 1x 4+4 Pin

• PCI-E Connectors: 2x 6+2 Pin (GPU ready)

• SATA Connectors: 5x

• Molex Connectors: 3x

Cooling

• Fan: 120mm Hydraulic Bearing Fan

• Silent Mode: Not available

Dimensions

• Size (L x W x H): 140 x 150 x 86 mm
